LINOVIS

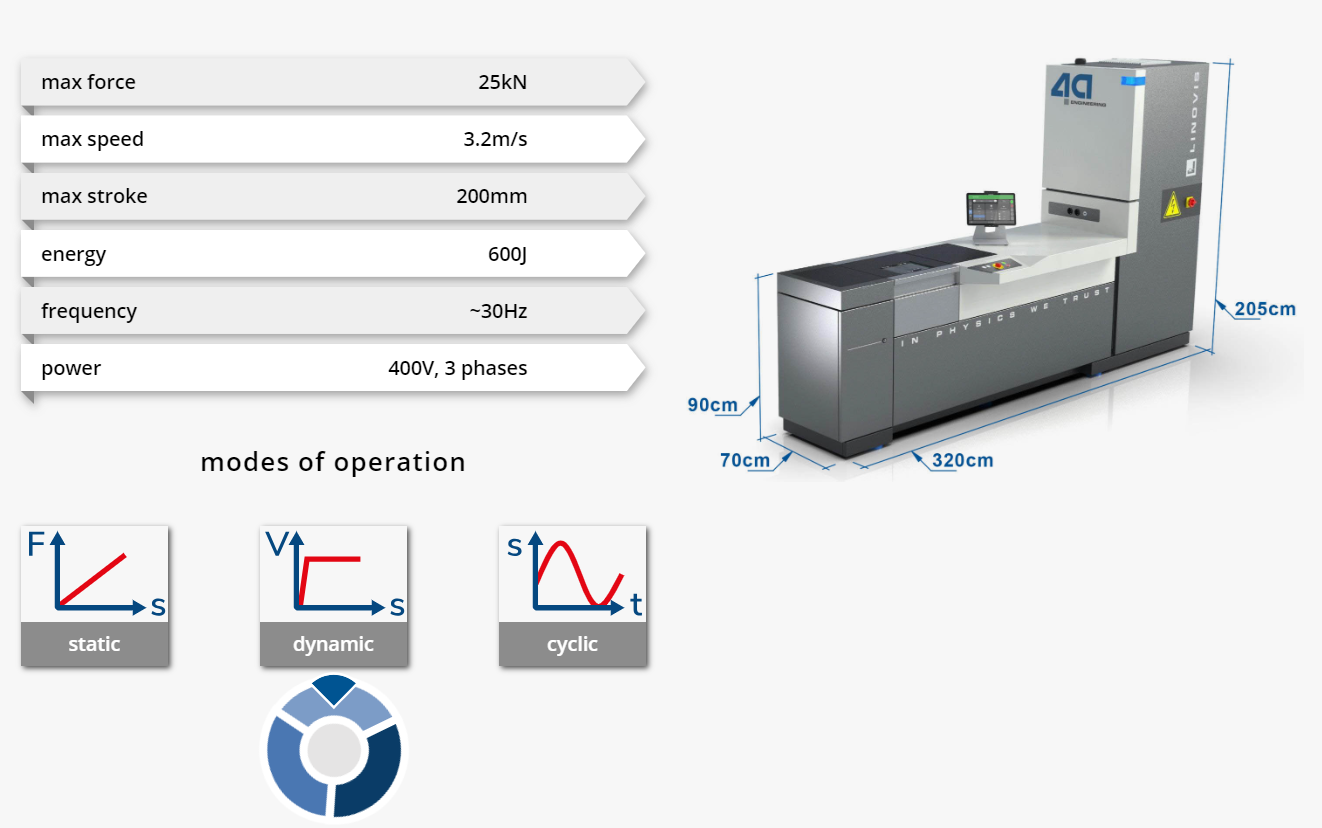

Our machine is the most versatile up-to-date testing system, offering 3 modes of use (static, dynamic, cyclic) and various test setups that can be switched within minutes. With a maximum force of 25kN, even in static mode, and the option of 2 integrated DIC cameras, we can assure you that no wishes remain unfulfilled. Our oil-free precision linear drive and extra stiff frame design ensure similar testing conditions for every test, from ductile plastics to high-strength steel alloys. The applications of our testing system seem endless, including high-fidelity material characterization, mechanical characterization of battery cells and cell stacks, impact testing on component level, and combined complex loading scenarios for all driving modes. Discover the power of our comprehensive electro-dynamic testing system today and take your testing capabilities to the next level.

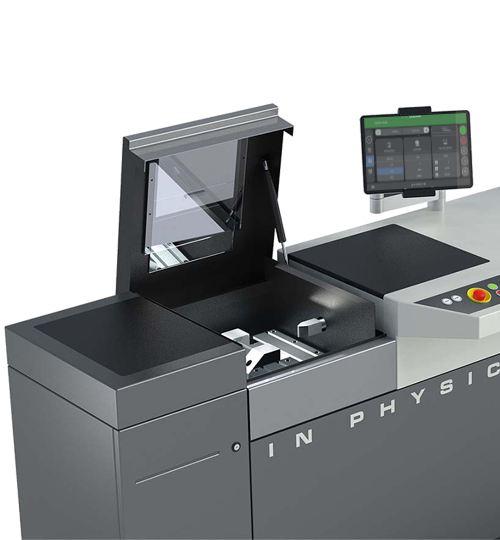

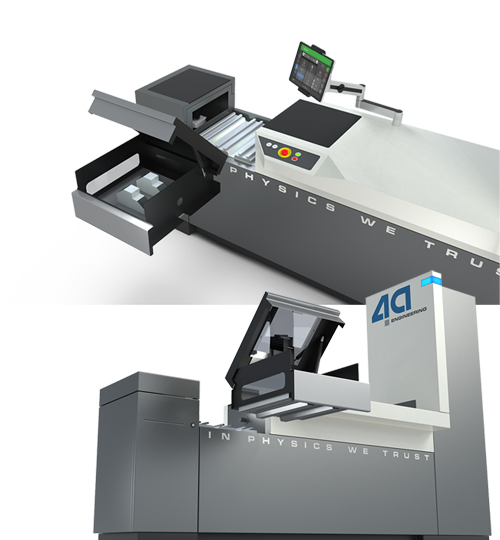

- - Exchangeable test chambers
- - Fast exchange of test setups
- - Integration of additional modules
- - Thermal chamber
- - Battery test chamber
- - Key for extensive automation
- - Closed during operations
- - 2 stop opening for fast operation
- - Change of specimen
- - Change of test setup
- - Observation window with dimming possibility

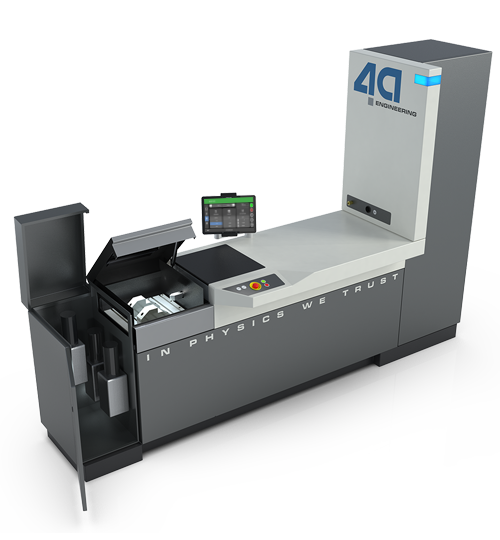

- - Integrated mounts for full 3D DIC capability
- - Fully time synchronized with DAQ system
- - Closed environment to minimize external factors (e.g. reflections)
- - Glare free vision
- - Automated processing of DIC
- - Moveable and detachable control unit
- - All controls within short distance
- - Direct and fast access to specimen
- - Additional workspace for post processing or preparation
- - Ports for connecting 3rd party devices

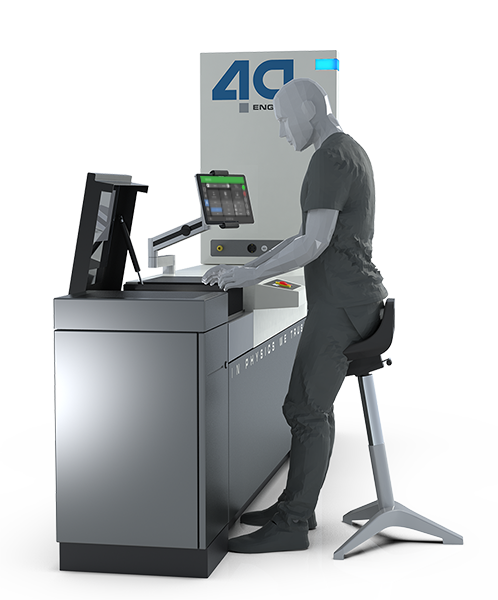

- - Ergonomic operation at stool height
- - Resolution of 2µs/500kHz for capturing high speed events
- - Force, displacement, temperature, voltage channels
- - Time synchronized high speed cameras

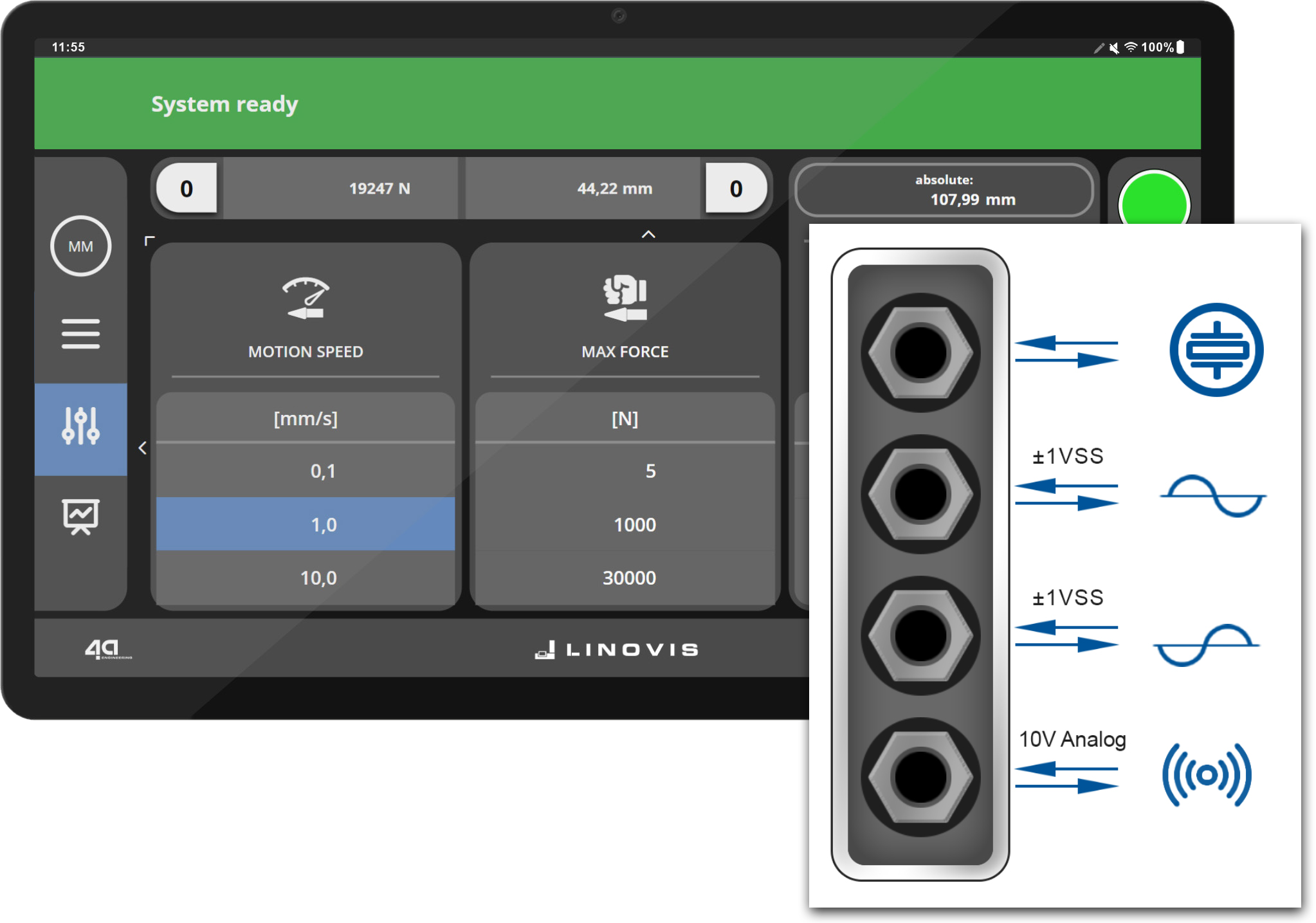

Our detachable touch screen interface makes it easier than ever to operate and manage your testing process and controlling the testing procedure. Our smart interface is designed with the user in mind, offering a streamlined experience that's intuitive and easy to navigate. With just a few taps on the screen, you can quickly and easily configure your testing parameters, set up tests and view real-time results. This touch interface is also customizable, allowing you to create a testing process that is optimized for your particular application, making it faster and more efficient than ever before.

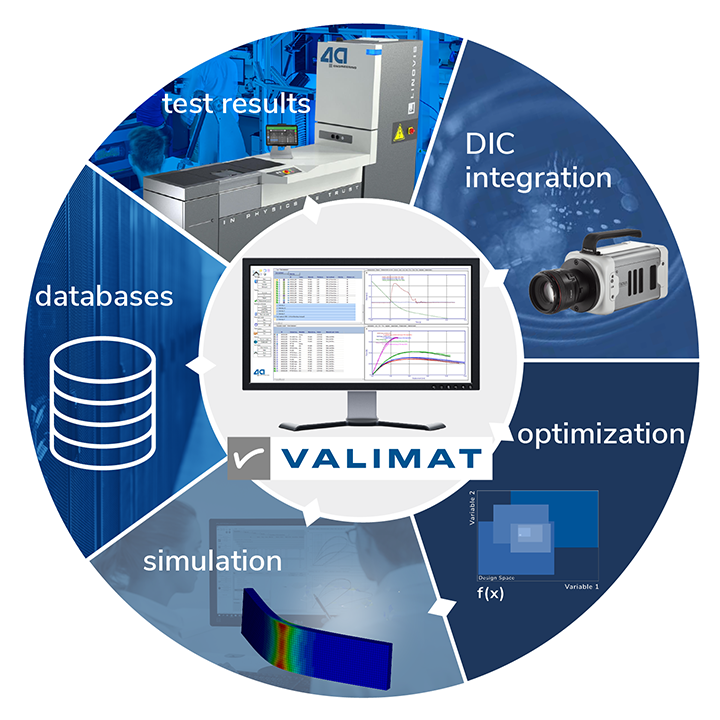

• Full integration into VALIMAT enviroment:
Our stand-alone software VALIMAT® combines test- and model data into an efficient database format and allows for methodical material characterization. The seamless and automated communication between LINOVIS® and VALIMAT® is the perfect basis for an efficient workflow in creating and optimizing a huge variety of complex material models with our fully automated AutoFit process in LS-Dyna, Pam-Crash, Abaqus(i.e.: *MAT_024, *MAT_187, MMATER, *PLASTIC... etc.). In a final step the material model can be validated on simple FEM coupon level tests or even custom built-up geometries and load-cases.
-
- Quasi-static universal testing machines
- Fatigue testing machines
- Drop tower machines
- High-speed servo-hydraulic machines
- Meeting international standard requirements such as: ISO, ASTM, BS, DIN, EN
-
- Test space: 450 x 600 x 450 mm (w/l/h)
- Fast exchange of test setups
- Thermal chamber
- Battery test chamber
- Custom built setups
-
- Applicable for widest range of materials and test geometries (individual geometries possible) thermoplasts, elastomers, carbon-fibers, composites, light metal alloys, steel alloys, ... exceptional speed range and deformation range
- Remote control and automated test data upload
- Prepared for automated test execution and change of test setups
- Seamless 3D DIC integration
- Precision control with 16kHz frequency
- Low operation and maintenance costs due to linear drive technology
- High precision extra stiff frame design
-
- Fully detachable and movable user interface
